Must

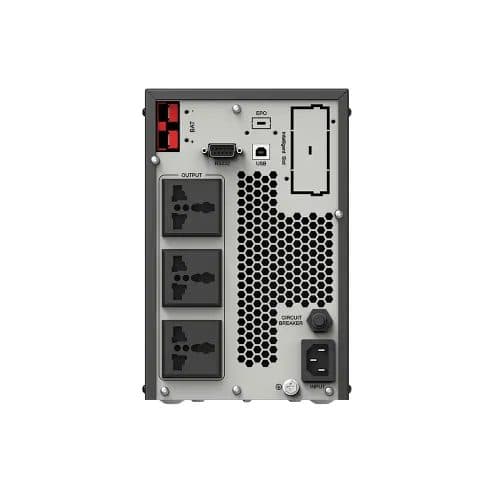

Must EH55-H1K3 1KVA Online UPS
- • Model: EH55-H1K3
- • Rated Capacity: 1KVA/1KW
- • Input Voltage: 208/220/230/240VAC
21,750৳23,900৳
In Stock

| Price | 21,200৳23,700৳ |
| Regular price | 23,700৳ |
| Status | In Stock |
| Product code | 46005 |
| Brand | Must |
You save 2,500৳ (11% off)
Payment options
| Capacity | 1KVA/1KW |
|---|---|
| Display Type | 2×8PIN/Pitch2.54mm, supports 128-bit segment code, up to 4 buttons + 4 LEDs, can display operating mode/load / input/output, etc. |
| Load Capacity | AC mode: 30min@102%~110% Load; 10min@110%~130% Load; 30s@130%~150% Load; 200ms@>150% Load Battery mode: 10min@102%~110% Load; 1min@110%~130% Load; 10s@130%~150% Load; 200ms@>150% Load |
| Input Voltage | 208/220/230/240VAC |
| Output Voltage | 208/220/230/240VAC |
| Noise Level | ≤45db |
| Battery | Battery type: Lead Acid Battery Rated Battery Voltage: 24V Battery Spec: 2*12V/9Ah Number of Internal Battery: 2/3(optional) |
| Others | With double conversion online design, zero output transfer time. Adopt DSP digital control Adopt the technology of active power factor correction technology (PFC) With 3-5 minutes can work when on full loads. Cold start by battery without grid Input. |
| Frequency | 50/60±6Hz (Default), ±10Hz (Settable) |
|---|---|
| Power Factor | L+N+PE |
| Voltage Range | 110~300VAC |
| Voltage Range | 208/220/230/240VAC |
|---|---|
| Power Factor | L+N+PE |
| Transfer Time | 4ms |
| Dimension | 143*222*285mm |
|---|---|
| Weight | 7.5 kg |
| Warranty | 1 Year (Box Mandatory While Claiming) Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
|---|
