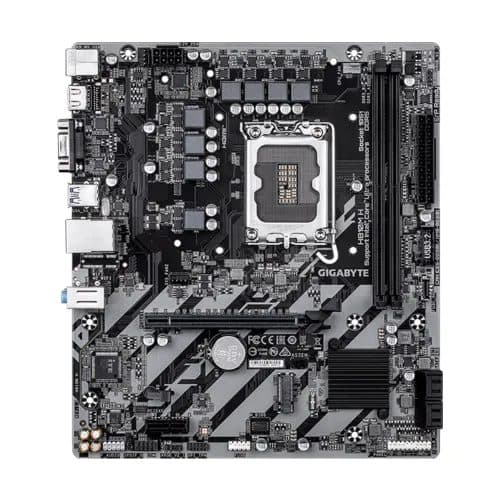

Name: Gigabyte H810M H LGA1851 mATX Motherboard
Brand: GIGABYTE
SKU: 47992
Price: 12500.00 BDT
Availability: InStock

Basic Information

Supported CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU
Chipset	Intel H810 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 21.5cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
M.2 Socket	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

Memory

Type	DDR5
Slots	2 x DDR5
Supported Memory	Support for DDR5 6400/5600 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory	up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture

Graphics

Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz (Graphics specifications may vary depending on CPU support.)

Connector & Ports

HDMI	1 x HDMI port
D-Sub (s)	1 x D-Sub
USB (s)	Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x D-Sub port 1 x USB 3.2 Ge
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

Others

Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty	3 Year

The Gigabyte H810M H LGA1851 mATX Motherboard is a dependable and efficient micro-ATX board built on the Intel H810 Express Chipset, engineered to support the latest Intel Core Ultra processors through the LGA1851 socket, making it a strong foundation for modern computing builds. Designed with dual DDR5 DIMM slots, it supports up to 128GB of high-speed memory with dual-channel architecture, delivering enhanced bandwidth and performance for multitasking, productivity, and entry-level gaming. With DDR5 speeds up to 6400 MT/s and XMP support, users can easily optimize memory performance, while compatibility with both ECC and non-ECC memory (operating in non-ECC mode) ensures flexibility across different system requirements. The motherboard integrates a 256 Mbit flash AMI UEFI BIOS, offering stable system management and compliance with ACPI 5.0 and SMBIOS 2.7 standards for smooth operation. Compact yet versatile, the Gigabyte H810M H provides essential connectivity and expansion options in the mATX form factor, making it an excellent choice for users seeking a reliable Gigabyte Motherboard, Gigabyte 810 Motherboard, Gigabyte H810M H Motherboard, or Gigabyte Intel Motherboard for everyday computing, office builds, and cost-effective system setups. Its combination of durability, scalability, and affordability makes the Gigabyte H810M H LGA1851 mATX Motherboard a practical solution for building efficient and future-ready PCs. In Bangladesh, you can get original Gigabyte H810M H LGA1851 mATX Motherboard From Star Tech. We have a large collection of latest Gigabyte Motherboard to Purchase for your Desktop PC . Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Gigabyte H810M H LGA1851 mATX Motherboard comes with a 3-year Warranty.
