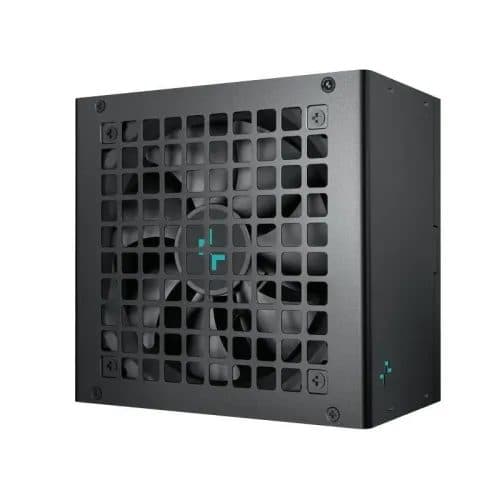

DeepCool PF700X 700W 80+ Bronze Power Supply

Key Features

MPN: R-PF700X-HD0B-JGUK
Model: PF700X
Type: ATX12V V2.52
Total Capacity: 700W
Certification: 80 Plus Bronze
Protection: OPP/OVP/OCP/SCP/OTP/UVP/SIP/NLO

Price	5,500৳6,050৳
Regular price	6,050৳
Status	In Stock
Product code	50591
Brand	Deepcool

You save 550৳ (9% off)

Payment options

Same-day delivery inside Dhaka on orders before 3pm
Genuine product with official warranty
Cash on delivery, card, mobile banking and EMI

Key Features

Efficiency (Approx.)	≥88% Under Typical Load(50% Loading)
Certification	80PLUS 230 EU Bronze/CYBENETICS Bronze /CYBENETICS A- 230V/PPLP 230V Bronze
Fan Size	120mm Longlife HYB
Others	Topology: Active PFC+DC to DC Capacitors: Taiwanese + Japanese Electrolytic Capacitors Power Good Signal: 100-150ms Hold Up Time: ≥16ms(75% Load) Protection: OPP/OVP/OCP/SCP/OTP/UVP/SIP/NLO Regulatory: CE/TUV-RH/CCC/RCM/KC MTBF: 40,000 Hours

Output

Modular Type	Non-Modular
Total Power	700W

Connector

Main Power	24(20+4)Pin × 1
CPU	CPU(4+4)Pin x 1
PCI-E	PCI-E(6+2)Pin x 1
SATA	SATA x 3 + 4Pin Peripheral x 1

Warranty Information

Manufacturing Warranty	3-year warranty

The DeepCool PF700X 700W 80+ Bronze Power Supply has Intel ATX12V V2.52 standard for broad compatibility. This Power Supply Triple Bronze efficiency certifications come from 80 PLUS, Cybenetics, and PPLP independently. Efficiency reaches at least 88% under typical 50% loading conditions consistently. This DeepCool PF700X Power Supply uses Active PFC combined with DC-to-DC topology. A dual-stage EMI circuit reduces ripple noise and voltage deviation significantly. Wide voltage adaptation supports 180V to 264V operation for flexible regional compatibility. Even at 160V low-voltage conditions, full-load operation continues without instability shutdown. Taiwanese premium solid and electrolytic capacitors ensure a hold-up time above 16ms. This DeepCool PF700X 700W Power Supply maintains performance under 75% load reliably. The 5V Stand-By rail uses Japanese electrolytic capacitors with four times normal lifespan. This extended standby capacitor life ensures stable power throughout daily operation. A 120mm long-life HYB bearing fan extends operational life by 30% over standard fans. This fan runs continuously for 7x24 hours in 40 degree Celsius environments quietly. Aerodynamic design based on PCB layout ensures stable, quiet airflow performance. The DeepCool PF700X 700W Power Supply has operation temperature ranges from 0 to 40 degrees Celsius for standard environments. High-altitude safety compliance extends reliable operation up to 5000 meters above sea level. GAMER STORM custom-molded sleeved cables improve installation and cable management significantly. Eight protection ICs cover OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO. Power Good Signal responds within 100 to 150 milliseconds for safe startup. MTBF reaches 40,000 hours, reflecting solid long-term build quality. Regulatory approvals include CE, TUV-RH, CCC, RCM, and KC certifications globally. This DeepCool 700W Power Supply suits budget and mid-range gaming builds effectively. In Bangladesh, you can get original DeepCool PF700X 700W 80+ Bronze Power Supply From Star Tech. We have a large collection of latest DeepCool Power Supply to purchase for your Desktop PC . Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The DeepCool PF700X 700W 80+ Bronze Power Supply comes with 3 years warranty.
